Deep Groove Ball Bearing(10≤d＜35)

發布日期：2025.04.30

Deep Groove Ball Bearing(10≤d＜35)

Deep Groove Ball Bearing(10≤d＜35)

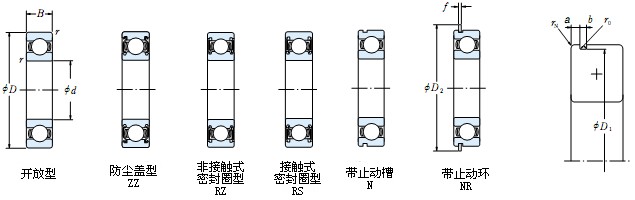

Dimensions(mm)				Load ratings		Limiting speed		Snap ring groove					Snap ring		Designations
Dimensions(mm)				(N)		*1000(rpm)		(mm)					(mm)		Designations
d	D	B	r	Cr(N)	Cor(N)	Grease	Oil	a(max)	b(min)	D1(max)	r0(max)	rN(min)	D2(max)	f(max)	Open	Shiled	Seal		with snap ring groove	with snap ring
10	19	5	0.3	1720	840	34	40	-	-	-	-	-	-	-	6800	6800ZZ	2RZ	2RS	-	-
	22	6	0.3	2700	1270	32	38	1.05	0.8	20.8	0.2	0.2	24.8	0.7	6900	6900ZZ	2RZ	2RS	N	NR
	26	8	0.3	4550	1970	30	36	1.35	0.87	24.5	0.2	0.3	28.7	0.84	6000	6000ZZ	2RZ	2RS	N	NR
	30	9	0.6	5100	2390	24	30	2.06	1.35	28.17	0.4	0.5	34.7	1.12	6200	6200ZZ	2RZ	2RS	N	NR
	35	11	0.6	8100	3450	22	26	2.06	1.35	33.17	0.4	0.5	39.7	1.12	6300	6300ZZ	2RZ	2RS	N	NR
12	21	5	0.3	1920	1040	32	38	-	-	-	-	-	-	-	6801	6801ZZ	2RZ	2RS	-	-
	24	6	0.3	2890	1460	30	36	1.05	0.8	22.8	0.2	0.2	26.8	0.7	6901	6901ZZ	2RZ	2RS	N	NR
	28	7	0.3	5100	2370	28	32	-	-	-	-	-	-	-	16001	-	-	-	-	-
	28	8	0.3	5100	2370	28	32	1.35	0.87	26.5	0.2	0.3	30.7	0.84	6001	6001ZZ	2RZ	2RS	N	NR
	32	10	0.6	6800	3050	22	28	2.06	1.35	30.15	0.4	0.5	36.7	1.12	6201	6201ZZ	2RZ	2RS	N	NR
	37	12	1	9700	4200	20	24	2.06	1.35	34.77	0.4		41.3	1.12	6301	6301ZZ	2RZ	2RS	N	NR
15	24	5	0.3	2070	1260	28	34	-	-	-	-	-	-	-	6802	6802ZZ	2RZ	2RS	-	-
	28	7	0.3	4350	2260	26	30	1.3	0.95	26.7	0.25	0.3	30.8	0.85	6902	6902ZZ	2RZ	2RS	N	NR
	32	8	0.3	5600	2830	24	28	-	-	-	-	-	-	-	16002	-	-	-	-	-
	32	9	0.3	5600	2830	24	28	2.06	1.35	30.15	0.4	0.3	36.7	1.12	6002	6002ZZ	2RZ	2RS	N	NR
	35	11	0.6	7650	3750	20	24	2.06	1.35	33.17	0.4	0.5	39.7	1.12	6202	6202ZZ	2RZ	2RS	N	NR
	42	13	1	11400	5450	17	20	2.06	1.35	39.79	0.4	0.5	46.3	1.12	6302	6302ZZ	2RZ	2RS	N	NR
17	26	5	0.3	2630	1570	26	30	-	-	-	-	-	-	-	6803	6803ZZ	2RZ	2RS	-	-
	30	7	0.3	4600	2550	24	28	1.3	0.95	28.7	0.25	0.3	32.8	0.85	6903	6903ZZ	2RZ	2RS	N	NR
	35	8	0.3	6000	3250	22	26	-	-	-	-	-	-	-	16003	-	-	-	-	-
	35	10	0.3	6000	3250	22	26	2.06	1.35	33.17	0.4	0.3	39.7	1.12	6003	6003ZZ	2RZ	2RS	N	NR
	40	12	0.6	9550	4800	17	20	2.06	1.35	38.1	0.4	0.5	44.6	1.12	6203	6203ZZ	2RZ	2RS	N	NR
	47	14	1	13600	6650	15	18	2.46	1.35	44.6	0.4	0.5	52.7	1.12	6303	6303ZZ	2RZ	2RS	N	NR
20	32	7	0.3	4000	2470	22	26	1.3	0.95	30.7	0.25	0.3	34.8	0.85	6804	6804ZZ	2RZ	2RS	N	NR
	37	9	0.3	6400	3700	19	22	1.7	0.95	35.7	0.25	0.3	39.8	0.85	6904	6904ZZ	2RZ	2RS	N	NR
	42	8	0.3	7900	4450	18	20	-	-	-	-	-	-	-	16004	-	-	-	-	-
	42	12	0.6	6400	5000	18	20	2.06	1.35	39.75	0.4	0.5	46.3	1.12	6004	6004ZZ	2RZ	2RS	N	NR
	47	14	1	12800	6600	15	18	2.46	1.35	44.6	0.4	0.5	52.7	1.12	6204	6204ZZ	2RZ	2RS	N	NR
	52	15	1.1	15900	7900	14	17	2.46	1.35	49.73	0.4	0.5	57.9	1.12	6304	6304ZZ	2RZ	2RS	N	NR
22	44	12	0.6	9400	5050	17	20	2.06	1.35	41.75	0.4	0.5	48.3	1.12	60/22	60/22ZZ	2RZ	2RS	N	NR
	50	14	1	12900	6800	14	16	2.46	1.35	47.6	0.4	0.5	55.7	1.12	62/22	62/22ZZ	2RZ	2RS	N	NR
	56	16	1.1	18400	9250	13	16	2.46	1.35	53.6	0.4	0.5	61.7	1.12	63/22	63/22ZZ	2RZ	2RS	N	NR
25	37	7	0.3	4500	3150	18	22	1.3	0.95	35.7	0.25	0.3	39.8	0.85	6805	6805ZZ	2RZ	2RS	N	NR
	42	9	0.3	7050	4550	16	19	1.7	0.95	40.7	0.25	0.3	44.8	0.85	6905	6905ZZ	2RZ	2RS	N	NR
	47	8	0.3	8850	5600	15	18	-	-	-	-	-	-	-	16005	-	-	-	-	-
	47	12	0.6	10100	5850	15	18	2.06	1.35	44.6	0.4	0.5	52.7	1.12	6005	6005ZZ	2RZ	2RS	N	NR
	52	15	1	14000	7850	13	15	2.46	1.35	49.73	0.4	0.5	57.9	1.12	6205	6205ZZ	2RZ	2RS	N	NR
	62	17	1.1	20600	11200	11	13	3.28	1.9	59.61	0.6	0.5	67.7	1.7	6305	6305ZZ	2RZ	2RS	N	NR
28	52	12	0.6	12500	7400	14	16	2.06	1.35	49.73	0.4	0.5	57.9	1.12	60/28	60/22ZZ	2RZ	2RS	N	NR
	58	16	1	16600	9500	12	14	2.46	1.35	55.6	0.4	0.5	63.7	1.12	62/28	62/28ZZ	2RZ	2RS	N	NR
	68	18	1.1	26700	14000	10	13	3.28	1.9	64.82	0.6	0.5	74.6	1.7	63/28	63/28ZZ	2RZ	2RS	N	NR
30	42	7	0.3	4700	3650	15	18	1.3	0.95	40.7	0.25	0.3	44.8	0.85	6806	6806ZZ	2RZ	2RS	N	NR
	47	9	0.3	7250	5000	14	17	1.7	0.95	45.7	0.25	0.3	49.8	0.85	6906	6906ZZ	2RZ	2RS	N	NR
	55	9	0.3	11200	7350	13	15	-	-	-	-	-	-	-	16006	-	-	-	-	-
	55	13	1	13200	8300	13	15	2.08	1.35	52.6	0.4	0.5	60.7	1.12	6006	6006ZZ	2RZ	2RS	N	NR
	62	16	1	19500	11300	11	13	3.28	1.9	59.61	0.6	0.5	67.7	1.7	6206	6206ZZ	2RZ	2RS	N	NR
	72	19	1.1	26700	15000	9.5	12	3.28	1.9	68.81	0.6	0.5	78.6	1.7	6306	6306ZZ	2RZ	2RS	N	NR
